| Individual
Item Surplus (A - B) |
|
| PHOTO |
DESCRIPTION
|
MFR
& ID #
|
 36-2505256-S
|
BRACKET,
6FT ALUMINUM FOR SP1A OR SP2AA PENDANT
ARM POLE NMPC SPEC E-1019 |
HAPCO
ALUM
A51849 |
36-2505258-S
|
BRACKET,
8FT ALUMINUM FOR SP1A OR SP2AA PENDANT
ARM POLE NMPC SPEC E-1019 |
HAPCO
ALUM
A51850 |
36-2505260-S
|
BRACKET,
12FT ALUMINUM FOR SP1A OR SP2AA
PENDANT ARM POLE NMPC SPEC E-1019 |
HAPCO
ALUM
A51852 |
36-2505262-S
|
BRACKET,
15FT ALUMINUM FOR SP1A OR SP2AA
PENDANT ARM POLE NMPC SPEC E-1019 |
HAPCO
ALUM
A51853 |
36-2505275-S
|
BRACKET,
20FT LIGHTING 1-1/4IN OR 2IN IPS GALV
STEEL UPSWEEP WITH GROUNDING LUG
BRACKET SHALL COMPLY WITH LATEST REV
OF ANSI C136.13 CLASS C OR D.
-RECOMMENDED FOR INSTALLATION AND
STOCKING |
HAPCO
ALUM
A65089-005 / MACLEAN S220ASG / MACLEAN
SF-LMB-1621-GL |
36-0806395-S
|
BRACKET,
MOUNTING, RACK-FRAME, TRANSFORMER,
SINGLE BAND STEEL, SUPPLIED WITH (6)
5/8IN TRANSFORMER MOUNTING BOLTS |
AB
CHANCE
C212-0141 |
36-0805081-S
|
BRACKET,
MOUNTING, POLE, MAX. ARRESTER SIZE TO
BE MOUNTED ON BRACKET IS 31.5KV MCOV
FOR PORCELAIN HOUSED ARRESTERS AND
57KV MCOV FOR POLYMER HOUSED
ARRESTERS. INCLUDES FASTENERS TO MOUNT
ARRESTERS TO BRACKET.
8-3/4IN B.C. |
OHIO
BRASS
96875-3001 |
36-3502766-S
|
BRACKET,
TANGENT, OFFSET, 24IN LONG, ALUMINUM,
FOR SPACER CABLE, INCLUDING MC-2
MESSENGER CLAMP |
HENDRIX
WC
BM-24A |
36-5984615-S |
BRACKET,
RECLOSER LADDER, PER NATIONAL GRID
STANDARD MS 2230. |
|
36-5984503-S |
BRACKET,
MOUNTING, EQUIPMENT, DUCTILE IRON,
12IN POLE, ONE POSITION, GALVANIZED
5IN POLE MOUNTING SPACING FOR 5/8IN
THRUBOLTS. TOP HOLE AND BOTTOM SLOT
11/16IN DIA OUTER HOLE TO ACCOMMODATE
1/2IN BOLT. |
JOSLYN
(O) P346 |
36-2505261-S |
BRACKET,
19-1/2IN MOUNTING ARM FOR SL45 OR SL46
FLOODLIGHT ASSEMBLY, MAX LOADING 110
LBS, 7.0 SQ FT EPA GALV OR ALUM,
INCLUDES 3/4IN X 1-1/2IN GALV OR
STNLS.STL MTG BOLT, NUT, LOCKWASHER |
COOPER
LIGHT
OA1009U0002 |
36-2023525-S |
BRACKET,
EQUIPMENT, TRIPLE ARM, FBRGL, W/PROT
COATING, 3PH, 48IN LG, FOR ARSR +
CUTOUT/TERMINATOR MTG. EQUIP HOLE DIA
(2) 9/16IN SQ HOLES, (1) 11/16IN RND
HOLE PER END FTG, POLE MTG HOLE DIA
(1) 11/16IN HOLE AND (1) 11/16IN HOLE
AND (1) 11/16IN SLOT |
MACLEAN
G3MA014813ADB |
36-0811032-S |
BRACKET,
FLOODLIGHT, ALUMINUM, 30IN LONG X 2IN
DIA FOR WOOD POLE MOUNTING. USED TO
MOUNT TWO TRUNION STYLE FLOODLIGHT
LUMINAIRES ON ONE ARM. IN ACCORDANCE
WITH SPECIFICATION IN NATIONAL GRID
USA STANDARD NO.MS-6320 |
HAPCOALUM
75786G1 |
36-0811170-S |
BRACKET,
ARRESTER, SURGE, TRANSFORMER,
GALVANIZED STEEL, TANK MOUNTED, 10-1/8
IN LONG X 1-1/4 IN WIDE. BRACKET
INCLUDES TWO 1/2 IN X 1IN HEX BOLTS,
FLAT WASHERS, LOCK WASHERS, AND
SPECIAL RETAINING CLIPS |
MACLEAN
APP-3115 |

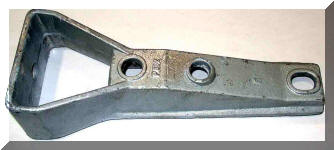

36-3502190-S |
BRACKET,
MOUNTING, INSULATOR, POLE TOP, MAX
VOLTAGE 66KV, DUCTILE IRON, HOT DIP
GALV PER ASTM A153. TOP MOUNTING HOLE
13/16IN DIA TO ACCEPT 3/4IN DIA
INSULATOR STUD BOLT. POLE BOLT SPACING
OF 8IN ONEHOLE AND ONE SLOT 11/16IN TO
ACCEPT 5/8IN BOLTS |
JOSLYN
P532 |
36-3502149-S |
BRACKET,
MOUNTING, APPARATUS, GALVANIZED STEEL
NEMA TYPE B WITH 1-1/2IN LONG CARRIAGE
BOLT PER ANSI STD. C37.42 |
CHANCE
C206-0283 |
36-5102584-S |
BRACKET,
EQUIPMENT MOUNTING, 12IN, THREE
POSITION, GALV MALLEABLE IRON, 5IN
POLE MOUNTING SPACING, FOR 5/8IN
THRUBOLTS. TOP HOLE AND BOTTOM SLOT
11/16IN DIA, OUTER HOLE TO ACCOMMODATE
1/2IN BOLT FOR EQUIPMENT MOUNTING |
MACLEAN
IACB-125 |
36-5984552-S |
BRACKET,
FRAMING FITTING, 24-1/8IN LG HOLE
SIZE, (3) 7/8IN DIA HOLES, GALV STEEL,
MOUNTING ASSEMBLY, F/600A 15KV AND
35KV OPEN TYPE DISCONNECT SWITCH, PER
MECO DWG MH-957-4, PER MS 2760 |
MACLEAN
SF-HSSB-2P-55 |

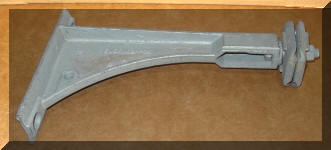

36-3502815-S |
BRACKET,
TANGENT OFFSET, 14IN LG, ALUM,
F/SPACER CABLE INCLUDING MC-2
MESSENGER CLAMP |
HENDRIX
WC
BM-14 |
B757 |
BRACKET,
ANGLE 90 DEGREE |
UNKNOWN |
B803 |
BRACKET,
RISER |
UNKNOWN |

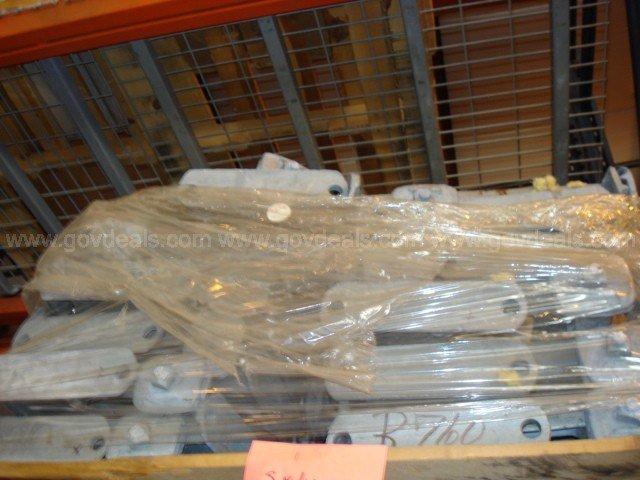

B760 |
BRACKET,
TANGENT 14" |
UNKNOWN |
|
| Item: |
BRACKET,
8, 10, 12, 18, FOOT STEEL ST LT
POLE METAL |
|
| Item
#: |
36-2505250-S |
| Item
#: |
36-2505251-S |
| Item
#: |
36-2505252-S |
| Item
#: |
36-2505253-S |
|
| Description: |
PER
LATEST COMPANY SPEC E-1019. |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
 |
| UNIONMETAL |
21-Y77 |
| VALMONT |
DWG.
#DB00022 |
|
| |
| Item: |
BRACKET,
6' ALUMINUM MAST ARM FOR
FIBERGLASS POLE ITEM |
|
|
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| SHAKESPEAR |
OP-AR-6 |
|
| |
| Item: |
BRACKET,
8' LIGHTING 1-1/4" OR 2"
IPS GALV STEEL |
|
|
| Description: |
SUPER
UPSWEEP WITH GROUNDING LUG BRACKET
SHALL COMPLY WITH LATEST REV OF
ANSI C136.13 CLASS C OR D, USE
ONLY WHERE EXCESS MOUNTING HEIGHT
IS REQUIRED |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| P
& K POLE |
NMP-SB6B2 |
| PK
NEUSES |
N/A |
|
| |
| Item: |
BRACKET,
MOUNTING, APPARATUS, GALVANIZED
STEEL, |
|
|
| Description: |
INCLUDES:
(2) 3/8IN. X 2IN. LONG GALVANIZED
STEEL CARRIAGE BOLTS WITH NUT LOCK
WASHER AND FLAT WASHER. |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| ALUMA-FORM |
D-1597 |
| COOPER
PWR |
129090 |
| JOSLYN
MFG |
J24518 |
| KEARNEY |
129090 |
|
| |
| Item: |
BRACKET,
SWINGING ANGLE, STEEL, 15IN. LONG
X 12IN. |
|
| Item
#: |
36-3502175-S |
|
| Description: |
ISPACING
X 9IN. MOUNTING BOLT SPACING. WITH
3/4IN. WASHERHEAD BOLT,
(2)WASHERS, (2)STANDARD NUTS. HOT
DIPPED GALVANIZED PER ASTM A123
AND A153. |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| ALUMA-FORM |
D-1597 |
| COOPER
PWR |
129090 |
| JOSLYN
MFG |
J24518 |
| KEARNEY |
129090 |
|
| |
| Item: |
BRACKET,
MOUNTING, INSULATOR, POLE TOP, MAX
VOLTAGE |
|
|
| Description: |
66KV,
DUCTILE IRON, HOT DIP GALV PER
ASTM A153. TOP MOUNTING HOLE
13/16IN. DIA TO ACCEPT 3/4IN. DIA
INSULATOR STUD BOLT. POLE BOLT
SPACING OF 8IN. ONE HOLE AND ONE
SLOT 11/16IN. TO ACCEPT 5/8IN.
BOLTS. HOLE AND ONE SLOT 11/16IN.
TO ACCEPT 5/8IN. BOLTS |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| CONT
ELEC |
PTB-66H |
| FLAGGBRAS |
P532 |
| JOSLYN
MFG |
P532 |
| MAC-CONT |
PTB-66H |
| MACLEAN |
BPT-58HF |
|
| |
| Item: |
BRACKET,
SUPPORT, GROUND WIRE DOWN LEAD,
24IN. LONG X |
|
|
| Description: |
13/16IN.
DIA FIBERGLASS INSULATION ROD.
DUCTILE IRON END FITTINGS, HOT
DIPPED GALVANIZED PER ASTM A153.
HOT DIPPED GALVANIZED NUT, BOLT
AND WASHER PER ASTM A123. TAPPED
FOR 5/8 - 11 UNC MOUNTING BOLT X
1-1/4IN. DEEP. WIRE RANGE 0.125IN.
- 0.398IN. DIAMETER. A123. TAPPED
FOR 5/8 - 11 UNC MOUNTING BOLT X
1-1/4IN. |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| AB
CHANCE |
BDL-224C |
| CONT
ELEC |
DLB-24-5 |
| FLAGGBRAS |
85-24 |
| HUGHES
BRS |
CF755.6-24
, CF757.6-24 |
| MAC-CONT |
DLB-24-5 |
| MACLEAN |
DLB-24-5 |
|
| |
| Please
contact for other types of bracket,
quantity, purchase information, and to verify the items
available. |
