QTY
|
UOM |
DESCRIPTION
|
MFR
& ID #
|

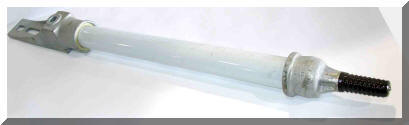

3502890 |
25 |
ea. |
PIN,
INSULATOR, POLE TOP, 32IN LONG, 2IN
EPOXY GLASS OR EQUIVALENT WITH PLASTIC
COATED 1IN STANDARD THREADED ALUMINUM
FERRULE, FERROUS OR ALUMINUM BASE 24IN
FROM TOP BOLT TO TOP GROOVE OF
INSULATOR, CANTILEVER STRENGTH
APPROXIMATELY 1.750 POUNDS |
MACLEAN
G1HDR124DS1SC |
3502922 |
10 |
ea. |
PIN,
INSULATOR, POLE TOP, 24IN LONG, 1-1/2IN
COATED FIBERGLASS WITH PLASTIC COATED
1IN STANDARD THREADED ALUMINUM OR
FERROUS FERRULE, FERROUS OR ALUMINUM
BASE 16IN FROM TOP BOLT TO TOP GROOVE OF
INSULATOR, CANTILEVER STRENGTH
APPROXIMATELY 1,250 POUNDS |
MACLEAN
G1MAR115AS1SC |
3502834 |
1 |
ea. |
PIN,
POLE TOP, 24IN, GALV STEEL, 1IN THREAD,
IN ACCORDANCE WITH ANSI 135.22 LATEST
EDITION. PIN TO HAVE PROVISIONS FOR 8IN
BOLT SPACING, USING 11/16IN HOLES WITH
BOTTOM HOLE BEING 11/16IN X 1-1/4IN
SLOT. THREADS MAY BE NYLON ALLOY OR
LEAD. |
CHANCE
2171P |
3502838 |
2 |
ea. |
PIN,
INSULATOR, ANGLE, 1IN LEAD THREAD,
GALVANIZED, MALLEABLE IRON OR STEEL,
BOLT NOT INCLUDED |
CHANCE
T206-0301 |

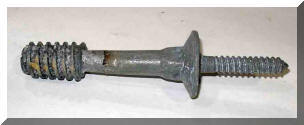

3502148 |
43 |
ea. |
PIN,
INSULATOR, TOP GROOVE, 1IN LEAD THREAD,
GALVANIZED STEEL WITH 22IN X 2-1/4IN
WOOD PER ANSI C135.17 |
JOSLYN
(O) J025 |
3502834 |
6 |
ea. |
PIN,
POLE TOP, 24IN, GALV STEEL, 1IN THREAD,
IN ACCORDANCE WITH ANSI 135.22 LATEST
EDITION. PIN TO HAVE PROVISIONS FOR 8IN
BOLT SPACING, USING 11/16IN HOLES WITH
BOTTOM HOLE BEING 11/16IN X 1-1/4IN
SLOT. THREADS MAY BE NYLON ALLOY OR
LEAD. |
CHANCE
2171P |
3502838 |
14 |
ea. |
PIN,
INSULATOR, ANGLE, 1IN LEAD THREAD,
GALVANIZED, MALLEABLE IRON OR STEEL,
BOLT NOT INCLUDED |
CHANCE
T206-0301 |
3502834 |
6 |
ea. |
PIN,
POLE TOP, 24IN, GALV STEEL, 1IN THREAD,
IN ACCORDANCE WITH ANSI 135.22 LATEST
EDITION. PIN TO HAVE PROVISIONS FOR 8IN
BOLT SPACING, USING 11/16IN HOLES WITH
BOTTOM HOLE BEING 11/16IN X 1-1/4IN
SLOT. THREADS MAY BE NYLON ALLOY OR
LEAD. |
CHANCE
2171P |
3502834 |
2 |
ea. |
PIN,
POLE TOP, 24IN, GALV STEEL, 1IN THREAD,
IN ACCORDANCE WITH ANSI 135.22 LATEST
EDITION. PIN TO HAVE PROVISIONS FOR 8IN
BOLT SPACING, USING 11/16IN HOLES WITH
BOTTOM HOLE BEING 11/16IN X 1-1/4IN
SLOT. THREADS MAY BE NYLON ALLOY OR
LEAD. |
CHANCE
2171P |
3502838 |
13 |
ea. |
PIN,
INSULATOR, ANGLE, 1IN LEAD THREAD,
GALVANIZED, MALLEABLE IRON OR STEEL,
BOLT NOT INCLUDED |
CHANCE
T206-0301 |
 |

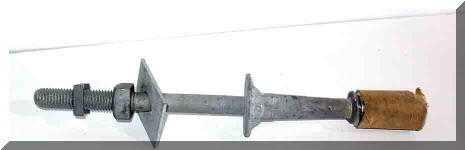

9 |
ea. |
PIN,
INSULATOR, TOP GROOVE, GALVANIZED STEEL,
5/8IN DIA SHANK. SHANK LENGTH 5IN ABOVE
AND 5-3/4IN BELOW 2-1/2IN FLANGE. 1IN
LEAD OR NYLON THREADS PER ANSI C135.17.
FURNISHED COMPLETE WITH 2IN SQUARE
WASHER, 5/8IN SQUARE NUT, AND MF
LOCKNUT. |
JOSLYN
J204Z |
0810979 |
1 |
ea. |
PIN,
ELBOW, PROBE FOR 15KV 200 AMP LOAD BREAK
ELBOW KIT |
ELASTIMOLD
166LRF |
LE
AD-TIP-PIN |
80 |
ea. |
PIN,
TOP GROOVE, 2", LEAD TIP SHK
6-1/2" |
CHANCE |

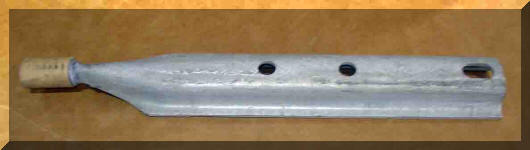

POLE-TOP-PIN |
5 |
ea. |
POLE
TOP PIN, LEAD TIPPED, 18-1/2" LONG |
N/A |
3502834 |
18 |
ea. |
PIN,
POLE TOP, 24IN, GALV STEEL, 1IN THREAD,
IN ACCORDANCE WITH ANSI 135.22 LATEST
EDITION. PIN TO HAVE PROVISIONS FOR 8IN
BOLT SPACING, USING 11/16IN HOLES WITH
BOTTOM HOLE BEING 11/16IN X 1-1/4IN
SLOT. THREADS MAY BE NYLON ALLOY OR
LEAD. |
CHANCE
2171P |
3502920 |
246 |
ea. |
PIN,
INSULATED, ANGLE, 20IN LONG, 1-1/2IN,
EPOXY GLASS OR EQUIVALENT WITH PLASTIC
COATED 1IN STANDARD THREADED ALUMINUM
FERRULE AND FERROUS OR ALUMINUM BASE
WITH 6IN HOLE SPACING. 1, 000 POUNDS
LONGITUDINAL STRENGTH, 1, 200 POUNDS
VERTICAL |
CHANCE
1SBM20H1 |
|

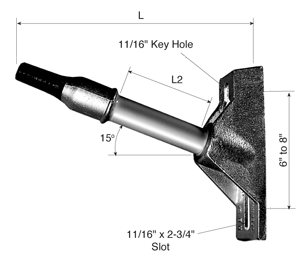

| Item: |
PIN,
INSULATED, ANGLE, 20IN. LONG,
1-1/2IN., EPOXY |
|
| Item
#: |
36-3502920-S |
|
| Description: |
GLASS
OR EQUIVALENT WITH PLASTIC COATED
1IN. STANDARD THREADED ALUMINUM
FERRULE AND FERROUS OR ALUMINUM
BASE WITH 6IN. HOLE SPACING. 1,000
POUNDS LONGITUDINAL STRENGTH,
1,200 POUNDS VERTICAL STRENGTH,
1,200 POUNDS VERTICAL |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
 |
| AB
CHANCE |
1SBM20H1,
C653-0032 |
| CONT
ELEC |
GPB-5568M-20 |
| HUGHES
BRS |
CF886-20 |
| MAC-CONT |
GPB-5568M-20 |
| MACLEAN |
GPB-5568M-20 |
|
| |
| Item: |
PIN,
INSULATOR, POLE TOP, 24IN. LONG,
1-1/2IN. COATED |
|
| Item
#: |
36-3502922-S |
 |
|
| Description: |
FIBERGLASS
WITH PLASTIC COATED 1IN. STANDARD
THREADED ALUMINUM OR FERROUS
FERRULE, FERROUS OR ALUMINUM BASE
16IN. FROM TOP BOLT TO TOP GROOVE
OF INSULATOR, CANTILEVER STRENGTH
APPROXIMATELY 1,250 POUNDS
CANTILEVER STRENGTH APPROXIMATELY
1,250 POUNDS |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| AB
CHANCE |
C653-0115,
RPM151 |
| CONT
ELEC |
GRP-58M-15 |
| HUGHES
BRS |
CF500-15A |
| MAC-CONT |
GRP-58M-15 |
| MACLEAN |
6749-15
, 6749-15P, G1MAR115AS1SC,
GR-58M-15, GR-58M-18 |
| REL
ELEC |
6749-15P |
|
| |

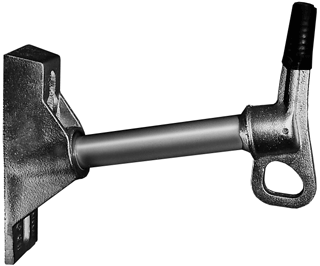

| Item: |
PIN,
INSULATOR, STANDOFF, 1 1/2IN. X
24IN. FIBERGLASS |
|
| Item
#: |
36-0810367-S |
|
| Description: |
WITH
PLASTIC COATED 1IN. STANDARD
THREADED ALUMINUM OR FERROUS
FERRULE, FERROUS OR ALUMINUM BASE
WITH 8 IN. BOLT HOLE SPACING, 1000
POUNDS LONGITUDINAL AND 1500
POUNDS VERTICAL STRENGTH POUNDS
VERTICAL STRENGTH |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| AB
CHANCE |
1SBM24V1 |
| CONT
ELEC |
GPB-5568M-24V |
| HUGHES
BRS |
CF810-24 |
| MAC-CONT |
GPB-5568M-24V |
| MACLEAN |
6744-24
, 6744-24P, G-5568M-24V,
G1MAA224AV1SC, GPB-5568M-24V |
|
| |
| Item: |
PIN,
STEEL INSULATOR GALV 1 IN, LEAD
THREADED TYPE |
|
|
| Description: |
ANSI
C135.17 STYLE 19 INCLUDES SQ NUT
AND LOCK WASHER (DNO) |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| |
| Item: |
PIN,
STEEL LSP #1 FOR HP1-35 INSULATOR |
|
|
| Description: |
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| |
| Please
contact for other types of pin,
quantity, purchase information, and to verify the items
available. |
