| Individual
Item Surplus (S - U) |
| Distribution
systems have switches installed at strategic
locations to redirect power flows for load
balancing or sectionalizing. It is rated in
amperes and is capable of interrupting its
rated voltage. |
|
Please
click on photo
for a larger view!
|
QTY
|
UOM |
DESCRIPTION
|
MFR
& ID #
|
|
5671319
|
13
|
ea. |
SWITCH,
DISCONNECT, 14.4KVAC, 600A, 40KA MOM,
SINGLE OPERATED, SPST, 600 AMP, 15 KV,
STICK OPERATED, 40000 AMP (MIN RMS)
MOMENTARY 110KV BIL INSULATORS, 2-HOLE
NEMA BRONZE TERMINAL PADS, COMBINATION
BLADE LATCH AND PRYOUT AND 90 DEG OPEN
POS BLADE STOP,
|
SCELECTRIC
4942R9
|
|
0808978
|
10
|
ea. |
SWITCH,
ELECTROSWITCH, TYPE LSR-1, 48 VDC WITH
INTERPOSING RELAY, OPERATING COIL C
RATED AT 48 VDC, SERIES 24, PANEL MOUNT,
ESCUTCHEON CODE 10D-2C22H ENGRAVED
RECLOSING SWITCH, FOR 1/8"
THICK PANELS |
Mfg
ID/Item ID: ELECSWITCH 9203CD
|
5671319 |
9 |
EA |
SWITCH,
DISCONNECT, 14.4KVAC, 600A, 40KA MOM,
SINGLE OPERATED, SPST, 600 AMP, 15 KV,
STICK OPERATED, 40000 AMP (MIN.RMS)
MOMENTARY 110KV BIL INSULATORS, 2-HOLE
NEMA BRONZE TERMINAL PADS, COMBINATION
BLADE LATCH AND PRYOUT AND 90 DEG OPEN
POS BLADE STOP, |
ROYALSWIT
19916 |
5671712 |
3 |
EA |

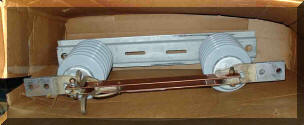

SWITCH,
DISCONNECT, 35KV, SINGLE PHASE, 600A
MINIMUM, 150KV BIL INSULATORS, WITH
SERRATED GALVANIZED STEEL BASE WITH
DEAD-ENDING HOLES, FULL MOUNTING PLATE
AND 4 CARRIAGE BOLTS, PER MS 2761. |
ROYALSWIT
(O)19995 |
5671319 |
9 |
EA |
SWITCH,
DISCONNECT, 14.4KVAC, 600A, 40KA MOM,
SINGLE OPERATED, SPST, 600 AMP, 15 KV,
STICK OPERATED, 40000 AMP (MIN.RMS)
MOMENTARY 110KV BIL INSULATORS, 2-HOLE
NEMA BRONZE TERMINAL PADS, COMBINATION
BLADE LATCH AND PRYOUT AND 90 DEG OPEN
POS BLADE STOP, |
ROYALSWIT
19916 |
5671319 |
3 |
EA |
SWITCH,
DISCONNECT, 14.4KVAC, 600A, 40KA MOM,
SINGLE OPERATED, SPST, 600 AMP, 15 KV,
STICK OPERATED, 40000 AMP (MIN.RMS)
MOMENTARY 110KV BIL INSULATORS, 2-HOLE
NEMA BRONZE TERMINAL PADS, COMBINATION
BLADE LATCH AND PRYOUT AND 90 DEG OPEN
POS BLADE STOP, |
SCELECTRIC
4942R9 |
9201482 |
1 |
ea. |
SWITCH,
DISCONNECT, 35KV, 900AMP, 110KV BIL,
40,000A MOMENTARY FIRED-ON WEDGE
IN-LINE, SINGLE STICK OPERATED, WITH
447AAC TAPS. IN ACCORDANCE WITH ANSI
C119.4, C37.30, C37.32 AND C37.34. |
TYCOELECT
109202-3 |
2027120 |
1 |
ea. |
SWITCH,
DISCONNECT, 15KV, SINGLE PHASE, 600A
MIN., 110KV BIL INSULATORS, WITH
SERRATED GALV STEEL BASE WITH
DEAD-ENDING HOLES, FULL MOUNTING PLATE
AND 4 CARRIAGE BOLTS, PER MS 2761. |
ROYALSWIT
(O)19916 |
2027120 |
1 |
ea. |
SWITCH,
DISCONNECT, 15KV, SINGLE PHASE, 600A
MIN., 110KV BIL INSULATORS, WITH
SERRATED GALV STEEL BASE WITH
DEAD-ENDING HOLES, FULL MOUNTING PLATE
AND 4 CARRIAGE BOLTS, PER MS 2761. |
SCELECTRIC
4942R9-E-D4-W |
2027285 |
3 |
ea. |
SWITCH,
TRANSFER, 16SBMB3A28S1K2V1 |
GEINDUSTRL
16SBM3A28S1K2V1 |
|
| Item: |
SWITCH,
34.5KV, 600A, SINGLE POLE, OPER
WITH |
|
|
| Description: |
POST
TYPE GRAY GLAZE COLOR INSULATOR
WITH 2 HOLE TERMINAL PAD 9/16 IN
HOLES ON 1 3/4 IN CENTER, NEMA
CAT55030 |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| |
| Item: |
SWITCH,
DISCONNECT, ENCLOSED PORCELAIN
TYPE, 7.8KV |
|
| Item
#: |
36-2027117-S |
 |
|
| Description: |
475KV
BIL WITH NON-REMOVABLE DEAD BLADE
600A. MIN.: #2 SOL. - MAX.: 500
MCM |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
 |
| COOPER
PWR |
FW3a1,
FW4A1 |
| MCGRAW-ED |
FW4A1 |
|
| Item: |
SWITCH,
DISCONNECT, 14.4 KV, 600 AMP, 95
KV BIL, |
|
| Item
#: |
36-2027120-S |
 |
|
| Description: |
75KV
BIL WITH NON-REMOVABLE DEAD BLADE
600A. MIN.: #2 SOL. - MAX.: 500
MCM |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| AB
CHANCE |
M3D-62B,
MD3-61BD, T807-0044 |
| CLEV
PRICE |
446152-H-L1 |
| COOPER
PWR |
127700LD-NMP
, FW3A1, FW4A1 |
| KEARNEY |
127700-LS-2
, 127700LD-NMP |
| MCGRAW-ED |
FW62D64 |
| S&C
ELEC |
4942-D2W
, 4942-DTW |
|
| |
| Item: |
SWITCH,
DISCONNECT, 34.5KV, 600A, LINE
TENS |
|
|
| Description: |
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
|
| |
| Item: |
SWITCH,
ELECTRO SWITCH, TYPE LSR-1, 48 VDC
WITH INTER |
|
|
| Description: |
POSING
RELAY, OPERATING COIL
"C" RATED AT 48 VDC,
SERIES 24, PANEL MOUNT, ESCUTCHEON
CODE 10D-2C22H EN- GRAVED "RECLOSING
SWITCH", FOR 1/8 IN THICK
PANELS |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| ELECTRO
SW |
9203CD |
|
| |
| Item: |
SWITCH,
PREASSEMBLED, THREE PHASE, GROUP
OPERATED, LOAD |
|
| Item
#: |
36-0807653-S |
|
| Description: |
BREAK,
23 & 34.5 KV, 200 KV BIL, 600
AMP, FITTED WITH LOAD BREAK
INTERRUPTERS, HORIZONTAL UPRIGHT
MOUNTING CONFIGURATION, SHALL BE
PRE-ASSEMBLED AND PRE-ALIGNED ON A
SINGLE MEMBER STEEL OR ALUMINUM
BASE, COMPLETE WITH MOUNTING
HARDWARE, CROSSARM BRACES SHALL BE
SUPPLIED IF REQUIRED, MANUAL
ROTATING OPERATING ASSEMBLY TO BE
FURNISHED WITH FLEXIBLE GROUNDING
SHUNT, NEMA STANDARD INSULATORS,
SWITCHES TO BE EQUIPPED WITH
SILVER CONTACTS, NEMA 2 HOLE
TERMINAL PADS TO BE TIN PLATED,
ALL FERROUS MATERIAL TO BE HOT DIP
GALVANIZED, SWITCH TO BE IN
ACCORDANCE WITH THE CURRENT ANSI
C37 SPECIFICATION FOR POWER
SWITCHING EQUIPMENT, SWITCH FRAME
SHALL BE EQUIPPED WITH A GROUNDING
CONNECTOR SUITABLE FOR #2 A SINGLE
MEMBER STEEL OR ALUMINUM BASE,
COMPLETE WITH |
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| AB
CHANCE |
T801-3423 |
| BRIDGES |
1094X-30B
, NM1094X-30B |
| S&C
ELEC |
137464R2
, 137464R2-Q103, 4740R1 |
| TURNER |
UDS1034S06 |
|
| |
| Item: |
SWITCH,
TUMBLER, 125V, 20A, SINGLE POLE,
HEAVY |
|
|
|
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| BRYANT |
4901W |
| GE |
3473 |
|
| |
| Item: |
SWITCH,
TYPE SBM AMMETER, GE, 10AJ822 |
|
|
| Description: |
| Potential
manufacturers and part numbers. |
| Manufacturer |
Part
Numbers |
|
| GE/BLOOM |
10AJ822 |
|
| |
| Please
contact for other types of switch,
quantity, purchase information, and to verify the items
available. |
